Custom-made - Approx. Lead time of 4-6 weeks - Contact us for Freight shipping quote & to place your order.

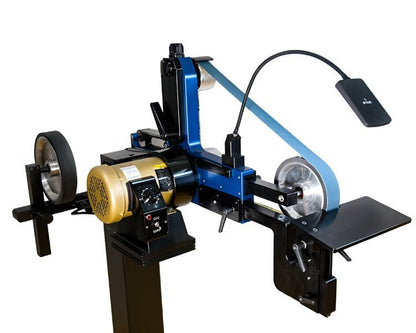

With 30 years of experience at the forefront of abrasive belt grinding, we are excited to introduce the QC grinder. This machine combines superior design, precise tolerances, and premium materials to provide a versatile and reliable workhorse that is a joy to operate.
- Uses the readily available 2″ x 72″ belt. They are available in grits from 36 all the way into your super fine microns and everywhere in between! Scotch brite & lapping belts are even available.
- Machined from solid billet aluminum and anodized for beauty and durability. No castings, except for the base of the pedestal, in this gem!

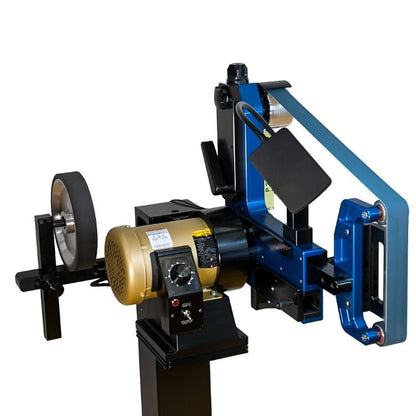

- Standard is a Baldor 1.5 HP variable speed motor. (2 HP available upon request) The motor is controlled by a custom made VFD specifically for our grinders that gives you a lot of belt speed control while still maintaining torque.

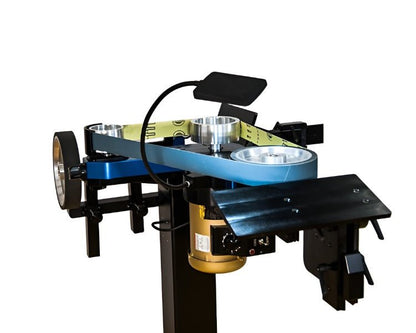

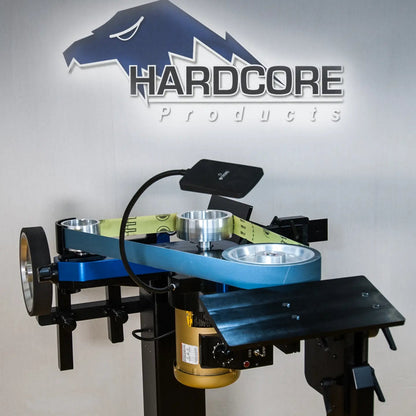

- The pedestal is included standard and features a ‘no tool needed’ lock for tilting the grinder from vertical to horizontal in a matter of seconds.
- A tool rack is available that bolts to the rear of your pedestal to keep your tooling close at hand and keep your shop organized as well.

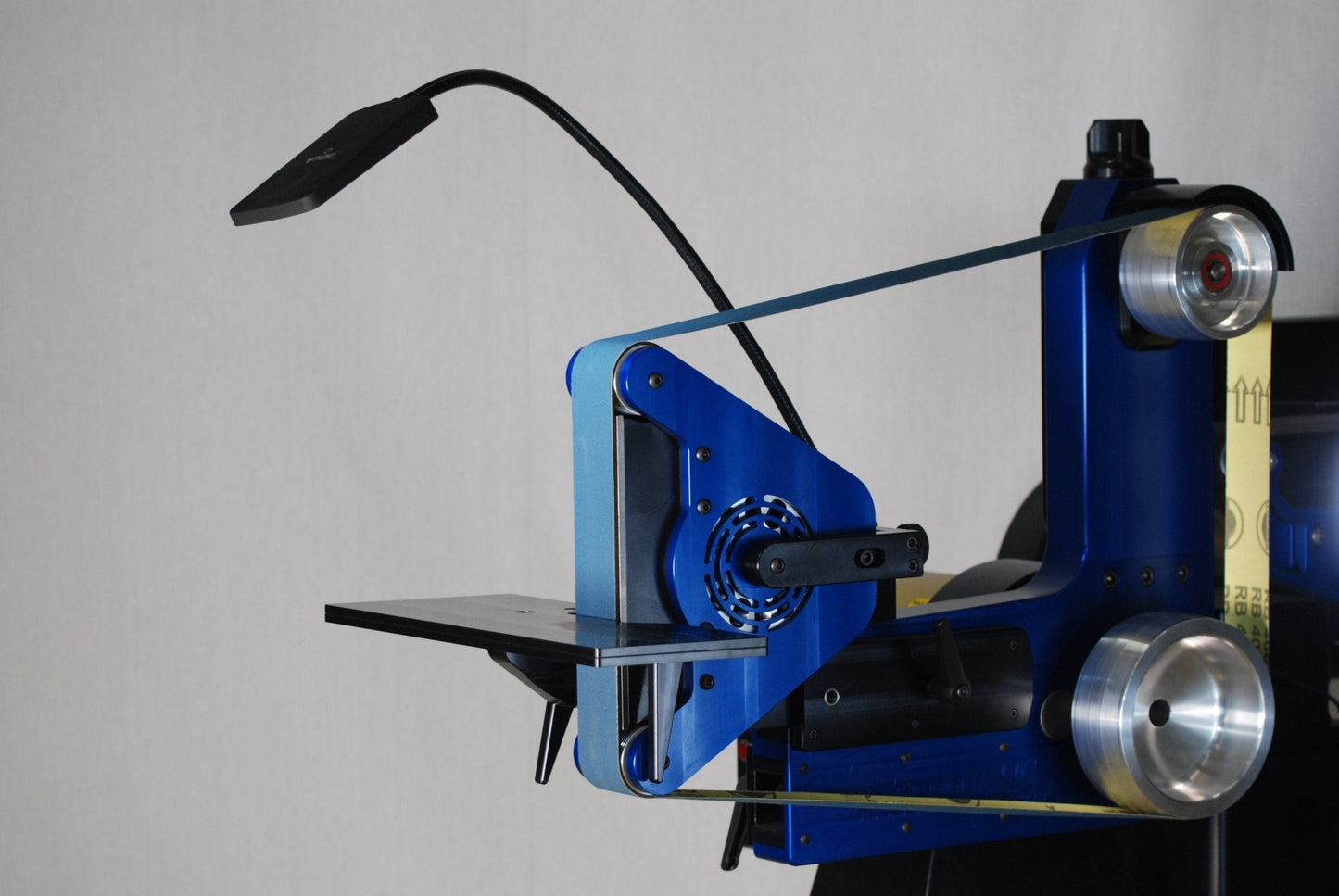

- Need focused lighting to concentrate on your grinding? No problem… LED gooseneck lighting also comes standard and is incorporated into the grinder!
- Tool changes are a breeze! No tools needed and tool changes can be made in a matter of seconds!
Package 1 Machine Includes:
Can Be Mounted to Your Own Pedestal or Workbench
Vertical Grinder With Quick Change (Will Not Tilt Horizontal, Can Be Upgraded Later)
Flat Platen Attachment Assembly with Aluminum Wheels
Vertical Double Dovetail Work Rest Assembly
Package 2 Machine Includes:
Pedestal
Vertical / Horizontal Grinder with Quick Change
Flat Platen Attachment Assembly with Urethane Wheels
Horizontal & Vertical Double Dovetail Work Rest Assembly
LED Lighting
Pro Package Includes:
Pedestal
Vertical / Horizontal Grinder with Quick Change
Flat Platen Attachment Assembly with Urethane Wheels
8” Contact Wheel Assembly
Small Wheel Attachment With ¾” and 1” Small Wheels
4 Station Tool Storage Rack
Horizontal & Vertical Double Dovetail Work Rest Assembly
LED Lighting
We have a wide array of tooling available...
- Contact wheels are all machined from a solid billet aluminum hub and clad with ultra-premium urethane and finish ground to within .002 T.I.R (Total indicator reading) This translates into the smoothest and quietest wheels available ANYWHERE! They are available in 8″, 10″ & 12″ sizes.
- A small wheel attachment is available for your tight quarter contouring needs. It features a dual wheel, no tools needed quick change between to wheel sizes. The small wheels are available from 5/16″ up to 3″ in mostly 1/8″ to 1/4″ increments. All clad in ultra-premium urethane!

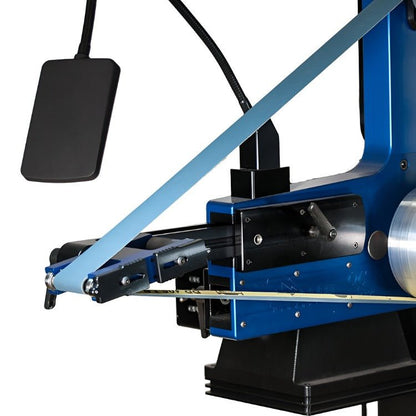

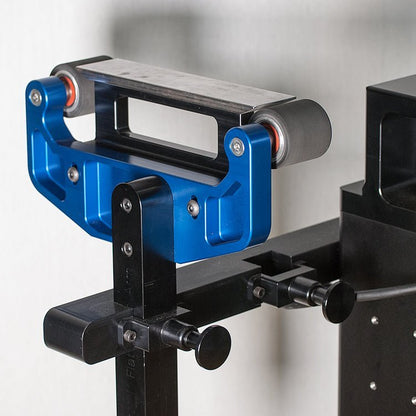

- We have your flat work grinding covered as well with a flat platen attachment! It features a 2″ x 8 3/4″ working surface.
- If you need to achieve super fine surface finishes on your flat work we have our Air-cooled Rotary Platen, designed and manufactured by Hardcore products.
- Work rests are available in the vertical and horizontal grinder positions. They feature a double dovetail design for easily moving your work rest up and down or in and out to your work surface. (no tools needed here either) The secondary dovetail slot is used for resetting your work rest location and features an angle adjusting stop for repeatability of your work rest.
